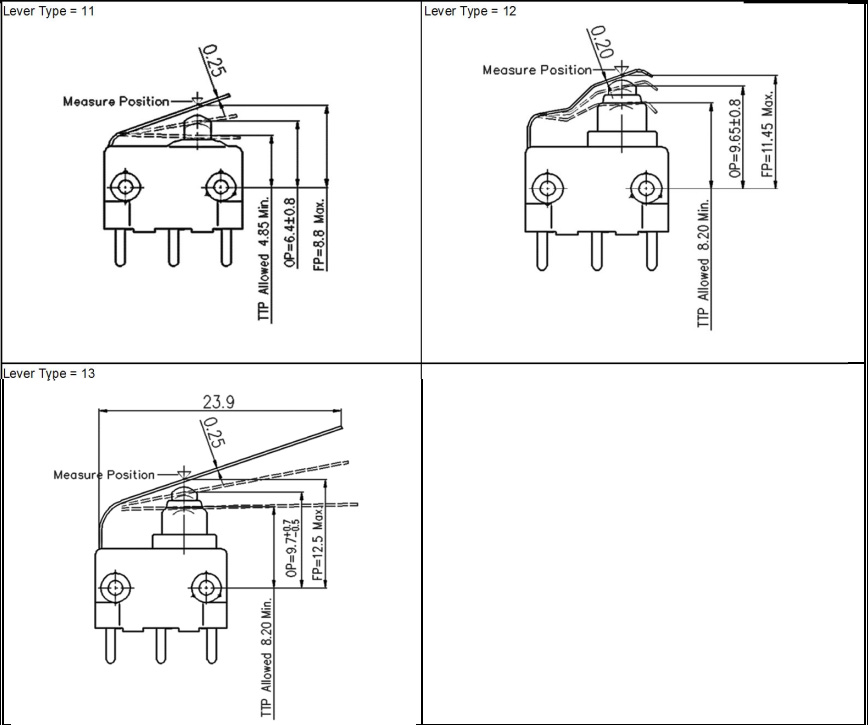

| Series | Electrical rating | Location Pin | Terminal Type | Lever Type | Contact Plating | Version |
|---|---|---|---|---|---|---|

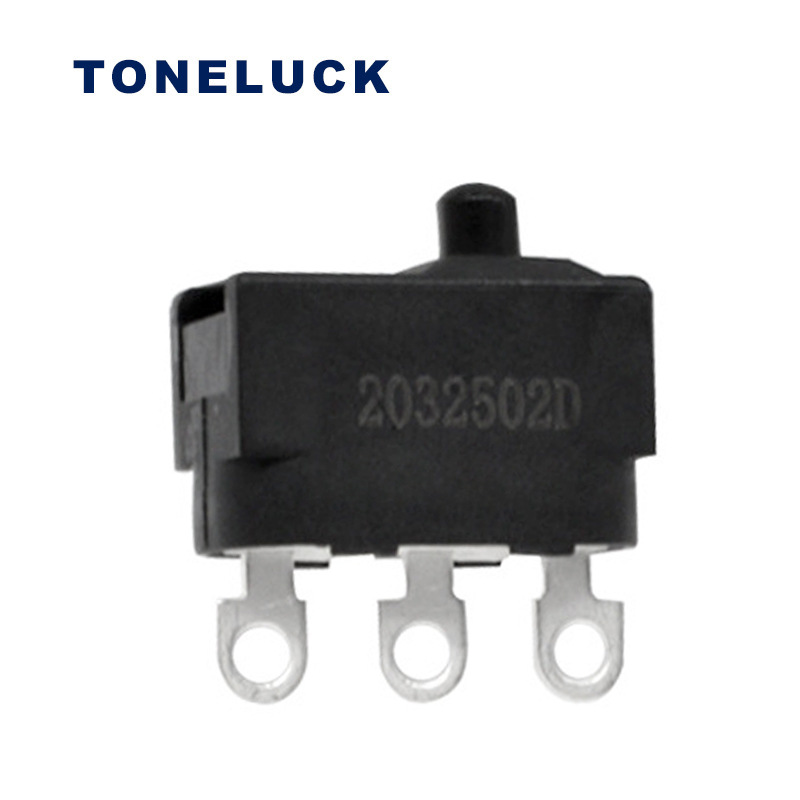

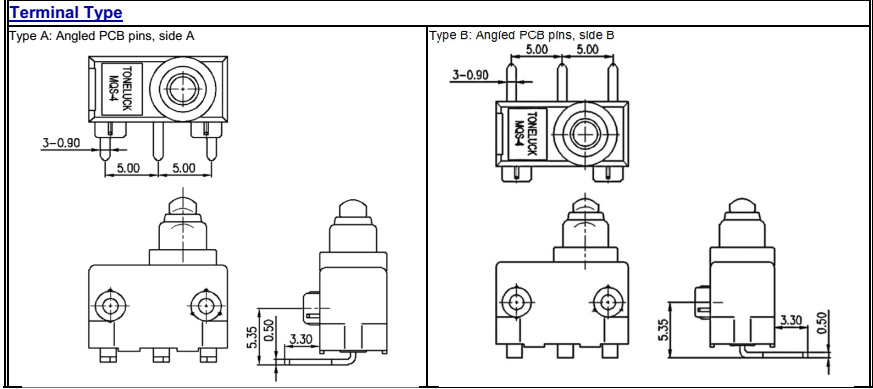

| MQS-41 | 1= 2A/12VDC,SPDT | A = Side A, 1.5mm | A=Angled PCB pins, side A | See the catalog | Ag=Sliver Alloy | 01:Standard Version |
| MQS-42 | 2= 10mA/12VDC,SPDT | B = Side B, 1.5mm | B=Angled PCB pins, side B | Custom-made:03,04,etc. | ||

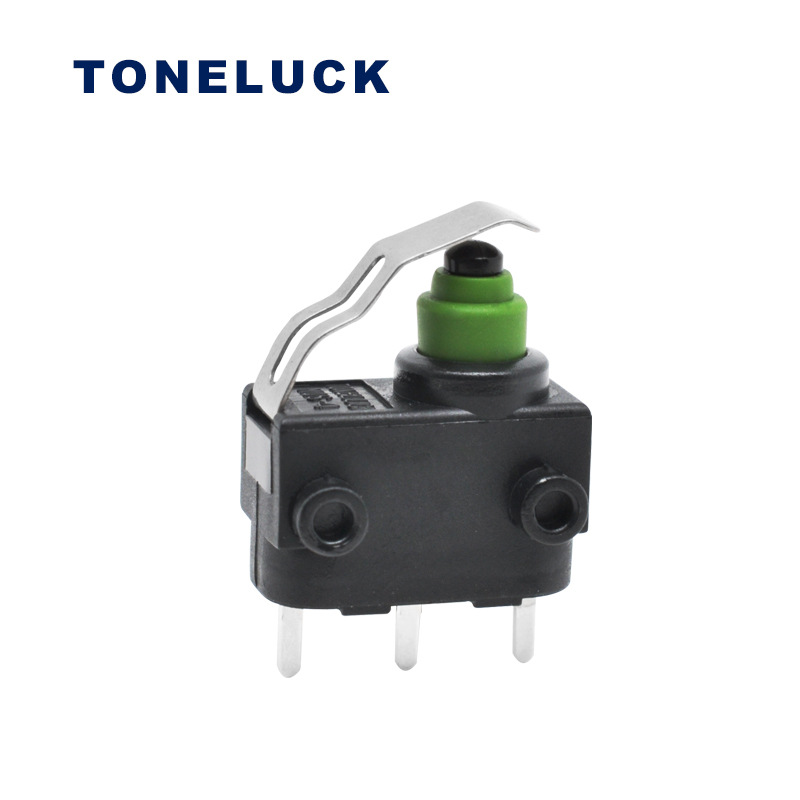

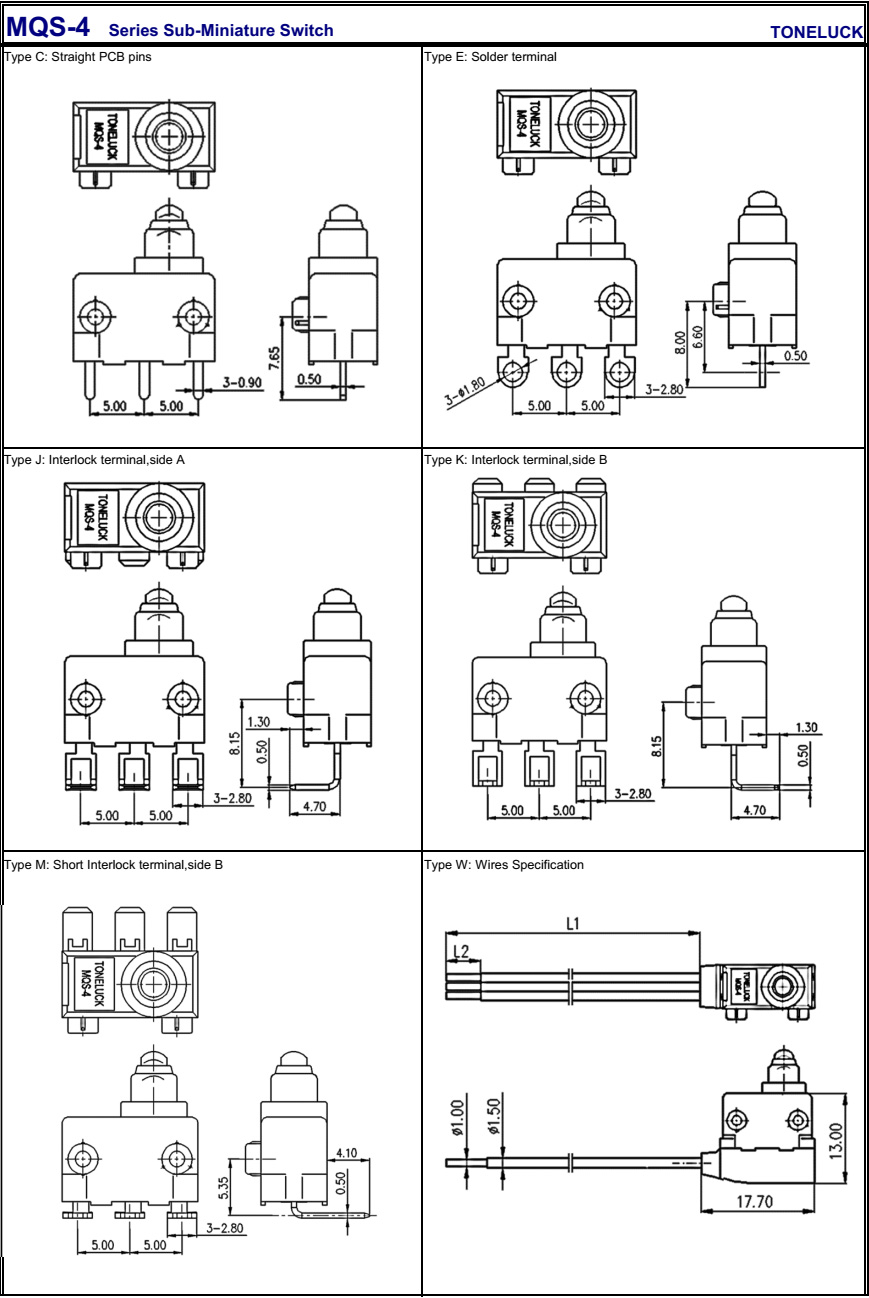

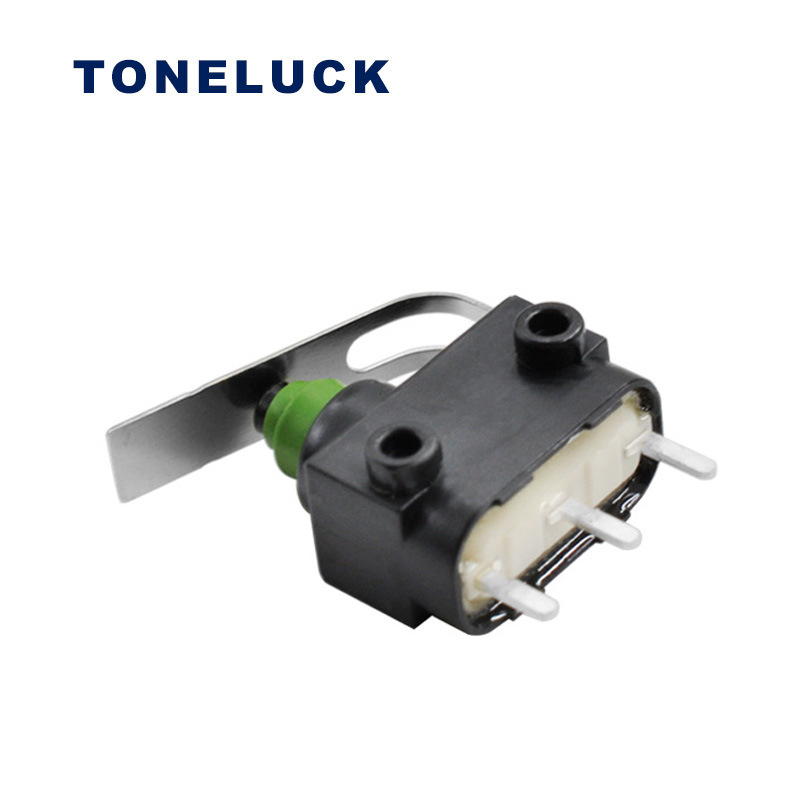

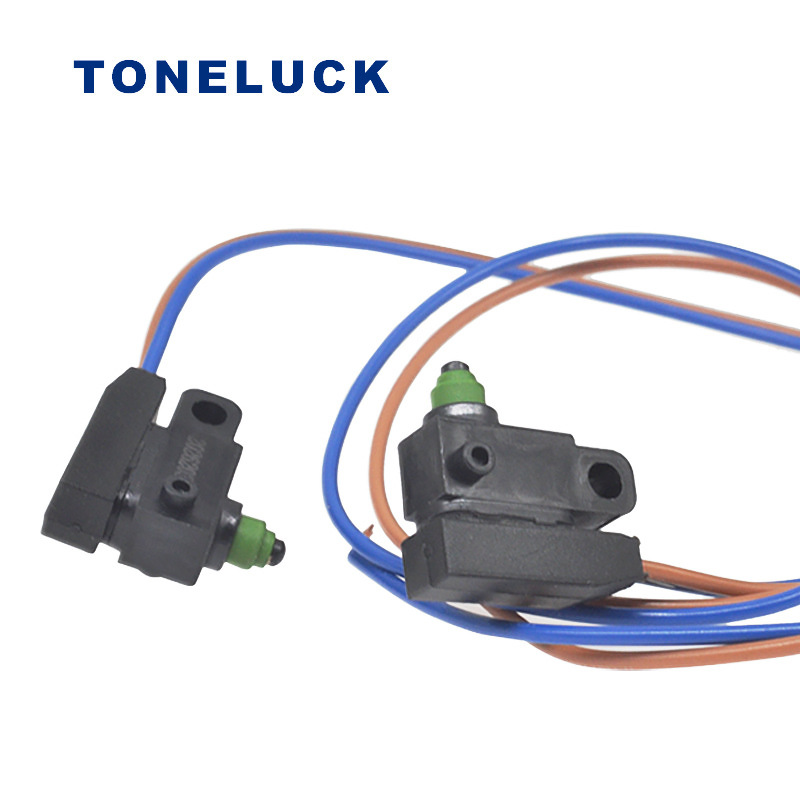

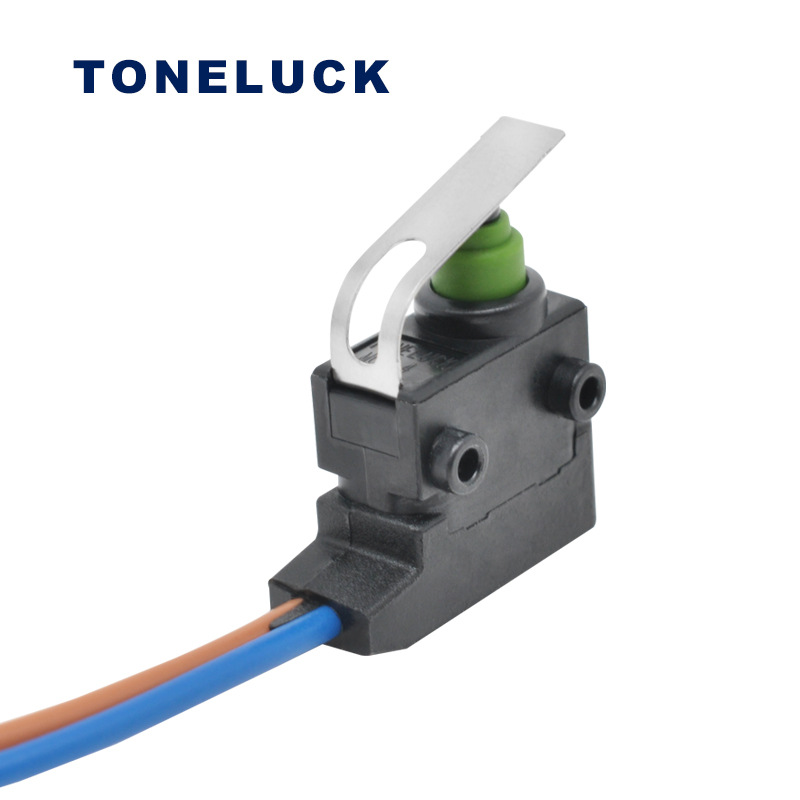

| MQS-43: second molding with wire | 3= 0.1A/250VAC,SPDT | C = Both Sides, 1.5mm | C=Straight PCB pins | |||
| 4= 2A/12VDC,SPST-NO | D = Side A, 2.5mm | D=Straight crimped PCB pins | ||||
| 5= 10mA/12VDC,SPST-NO | E = Side B, 2.5mm | E=Solder terminal | ||||

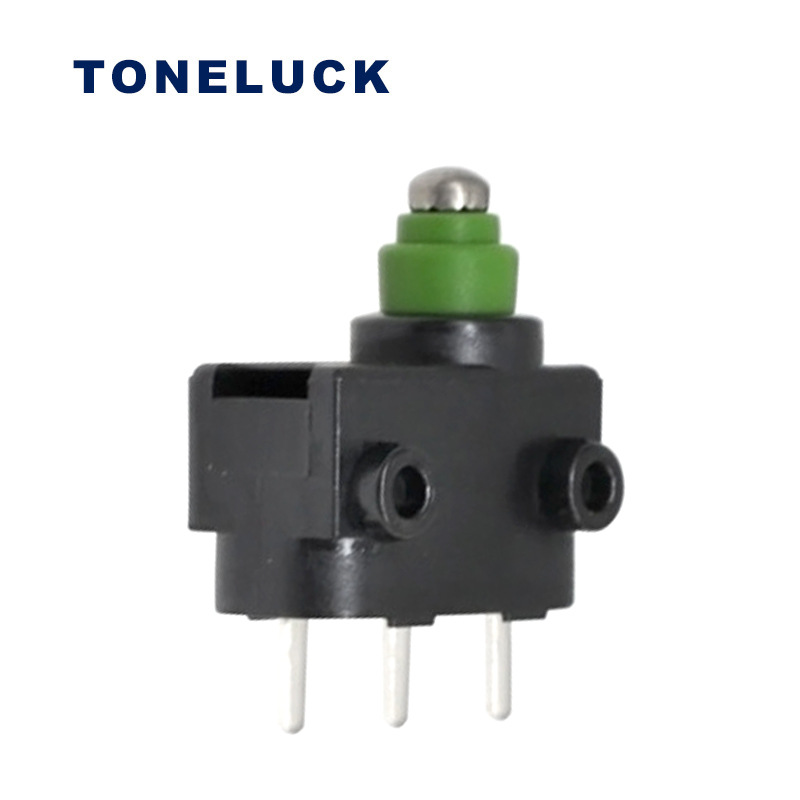

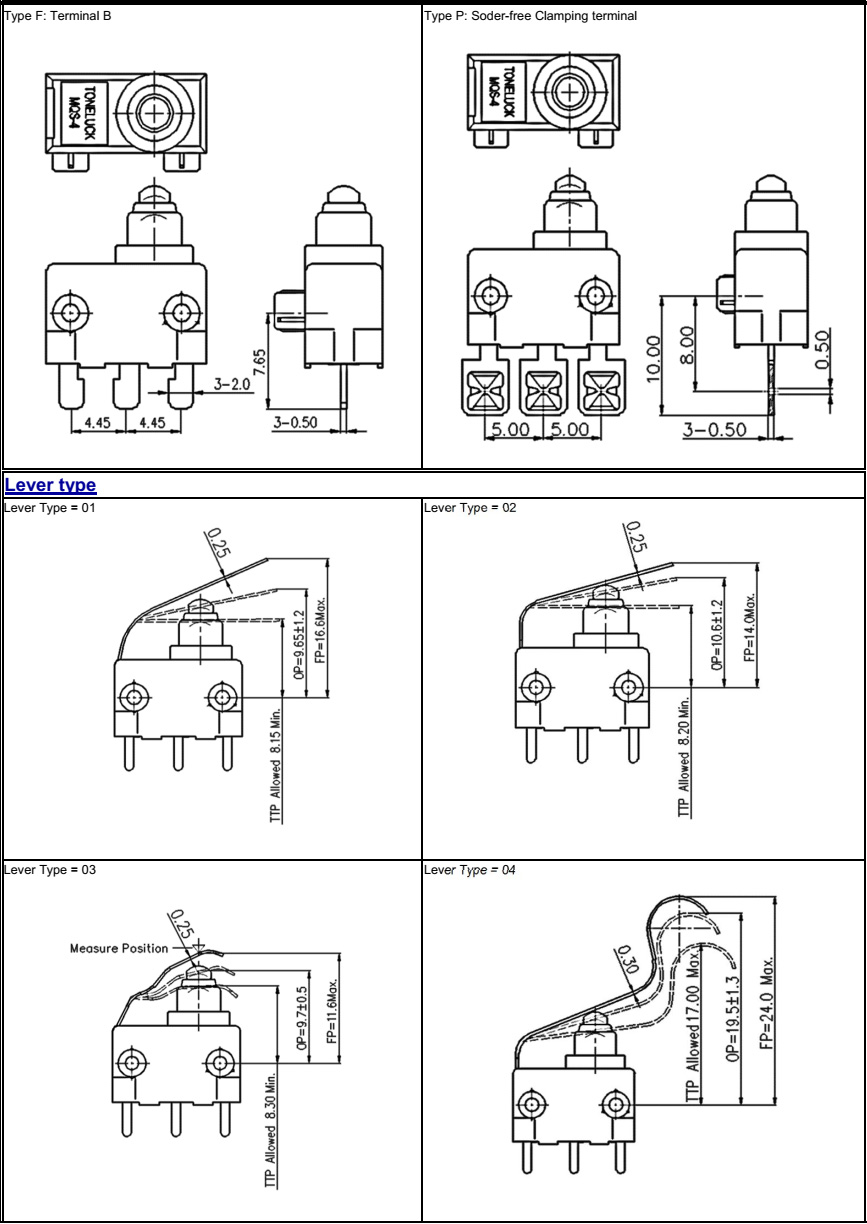

| 6= 0.1A/250VAC,SPST-NO | F = Both Sides, 2.5mm | F=Terminal B | ||||
| 7= 2A/12VDC,SPST-NC | G = Side A,5mm | H=Angled Solder terminal,Side B | ||||
| 8= 10mA/12VDC,SPST-NC | H = Side B, 5mm | J=Interlock terminal,side A | ||||
| 9= 0.1A/250VAC,SPST-NC | J = Both Sides, 5mm | K= Interlock terminal,side B | ||||
| N = No Position Pin | M=Short Interlock terminal,side B | |||||
| M=Side A, 2.5mm+Side B(single), 0.8mm | P=Soder-free Clamping terminal | |||||
| W=Wires Specification: eg.W1,W2,W3,etc |

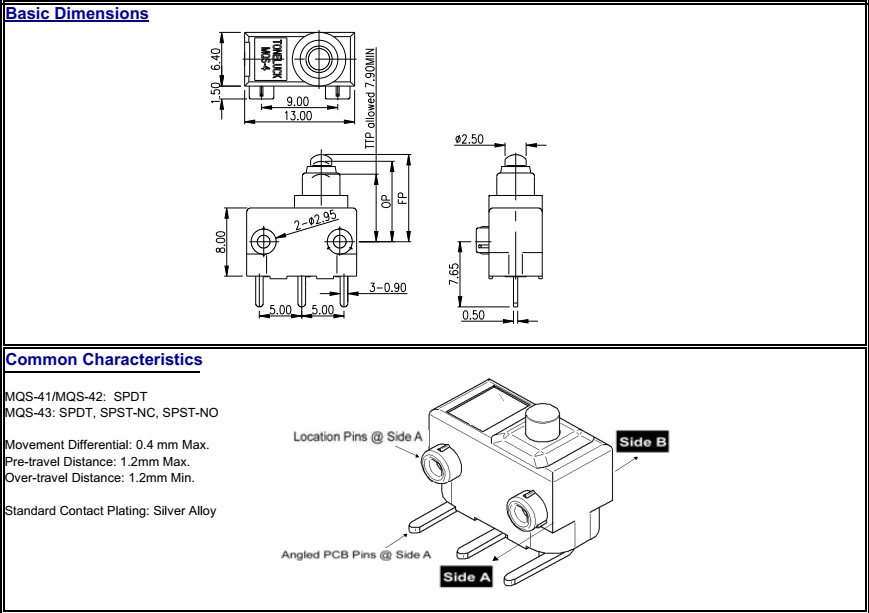

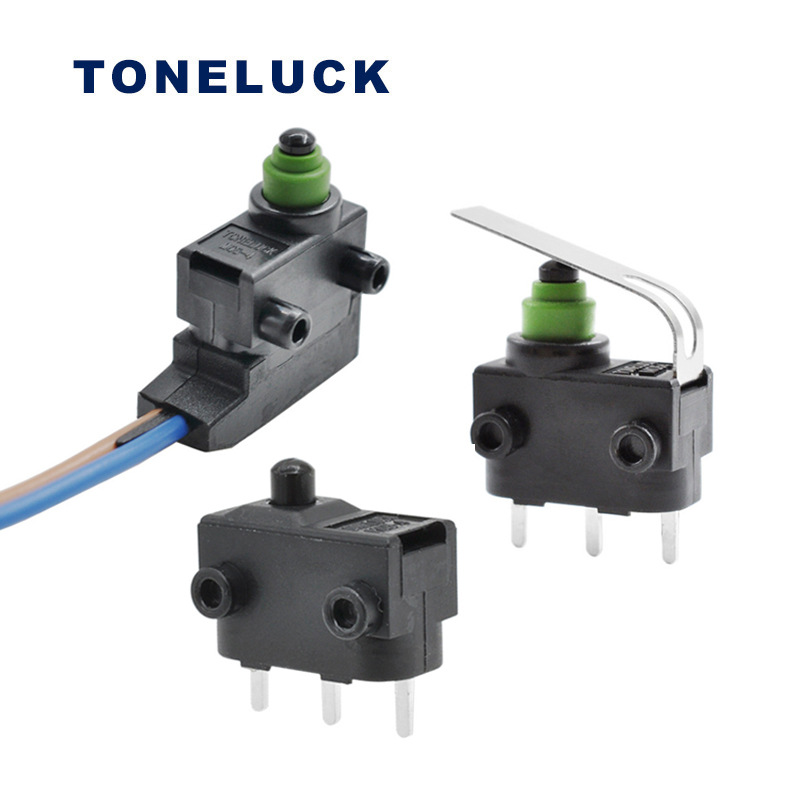

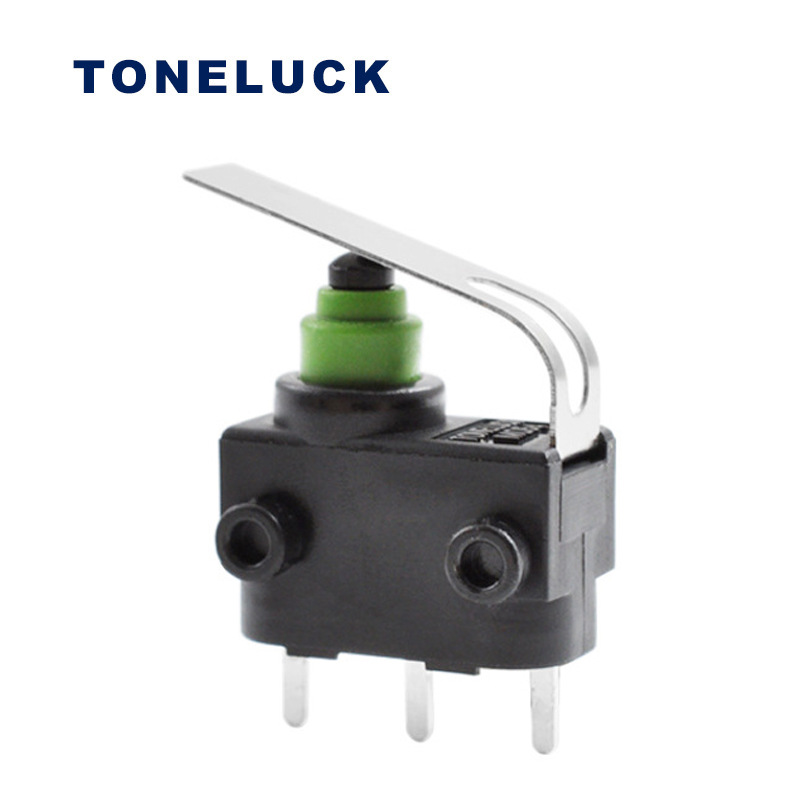

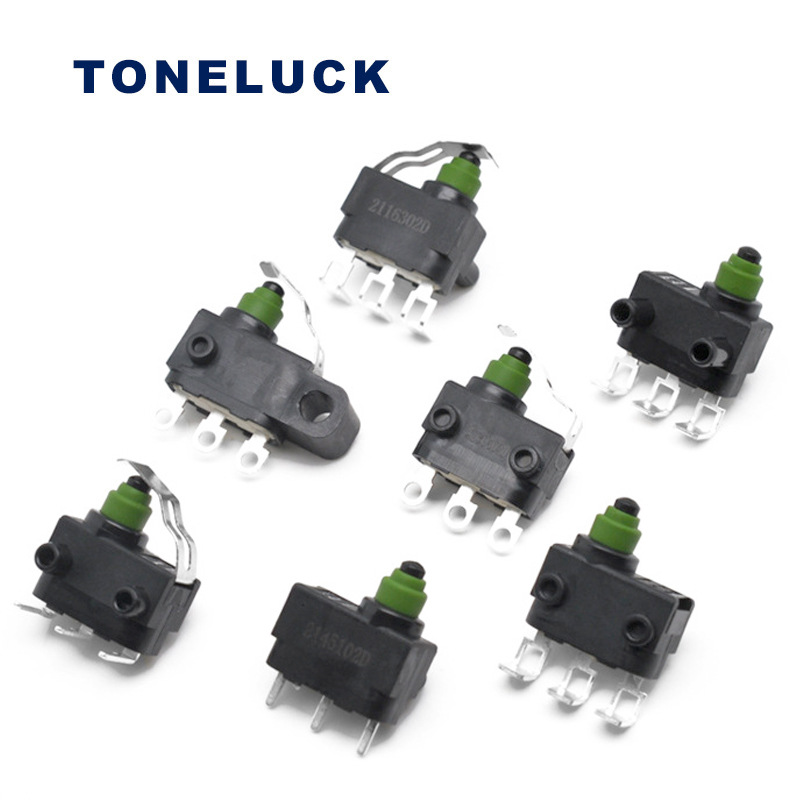

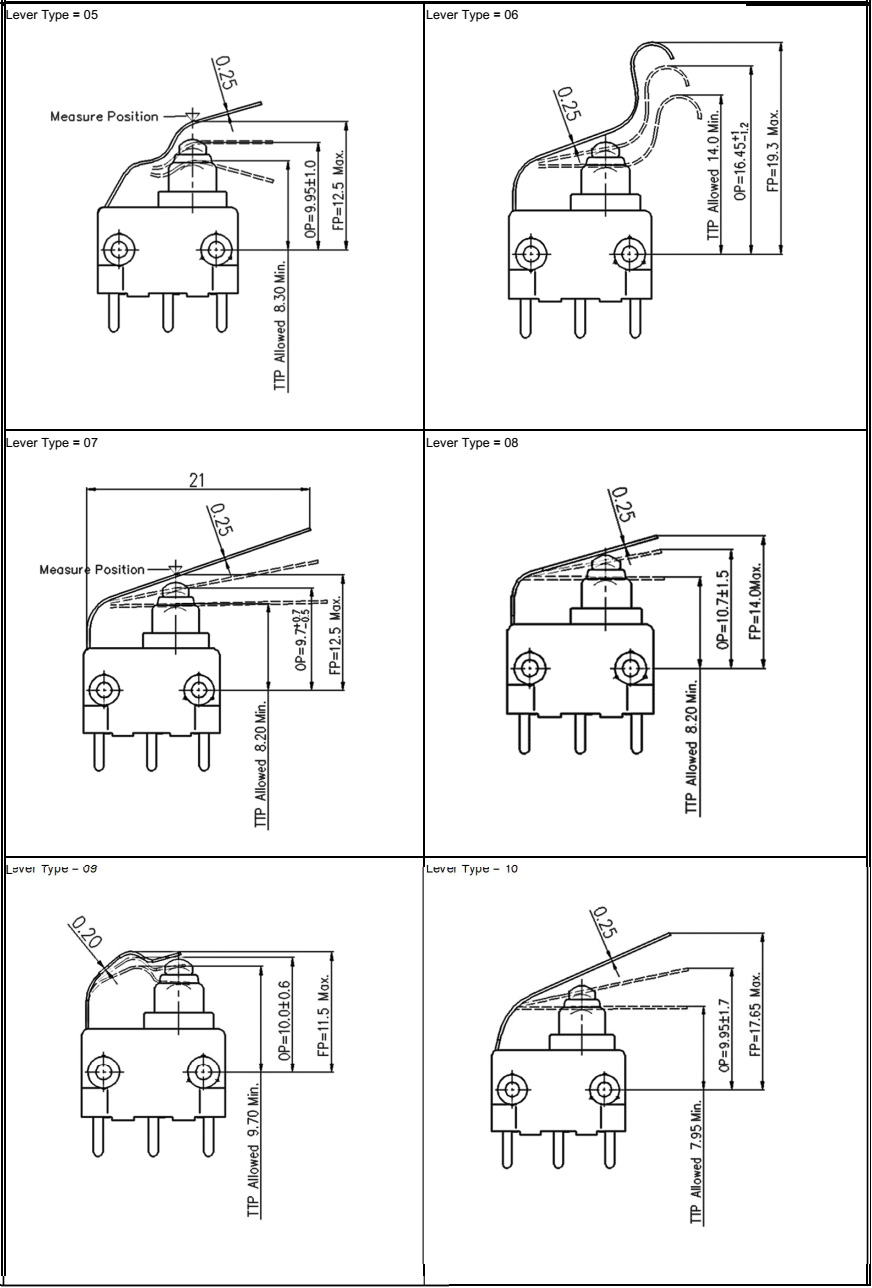

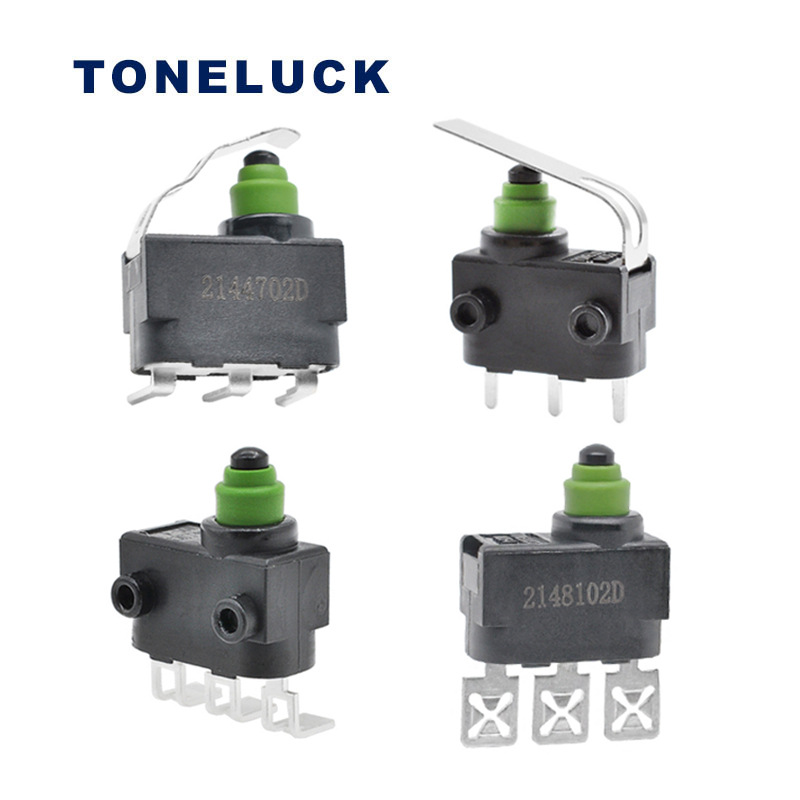

MQS-4 Waterproof Micro Switch Specification |
| Series | Actuation Side IP Protection | Terminals Side IP Protection | Operation Force | Operation Position |
|---|---|---|---|---|
| MQS-41 | IP 67 | IP00 | 50 – 150 gf | 6.15±0.3mm |
| MQS-42 | IP 67 | IP 00 | 50 – 200 gf | 9.40±0.3mm |
| MQS-43 | IP 67 | IP 67 | 50 – 200 gf9 | 9.40±0.3mm |
| Electrical rating | 2A/12VDC, 40T85, 100000 cycles |
|---|---|
| 2A/24VDC, 40T85, 50000 cycles | |
| 10mA/12VDC, 40T85, 250000 cycles | |
| 0.1mA/250VAC, 40T85, 50000 cycles | |
| 0.5mA/250VAC, 40T85, 10000 cycles | |
| Mechanical Life | 1,000,000 cycles |
| Contact Resistance | 50mΩ Max. (initial) |
| Insulation Resistance | 100 MΩ Min. |
| Dielectric Strength | 500VAC for 60 ± 5 sec. |
| Housing | UL94 V-0 |
