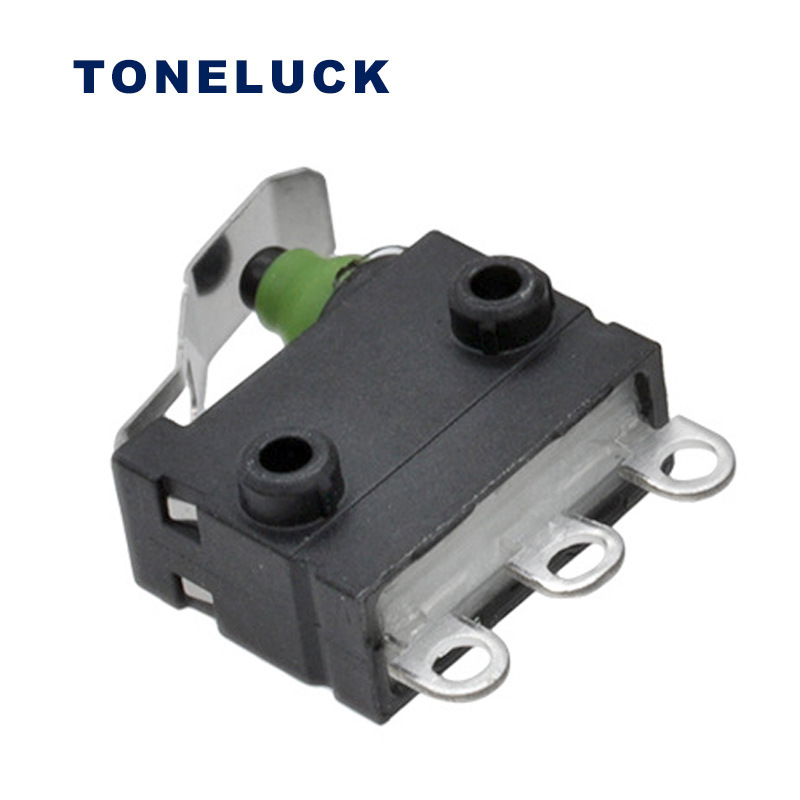

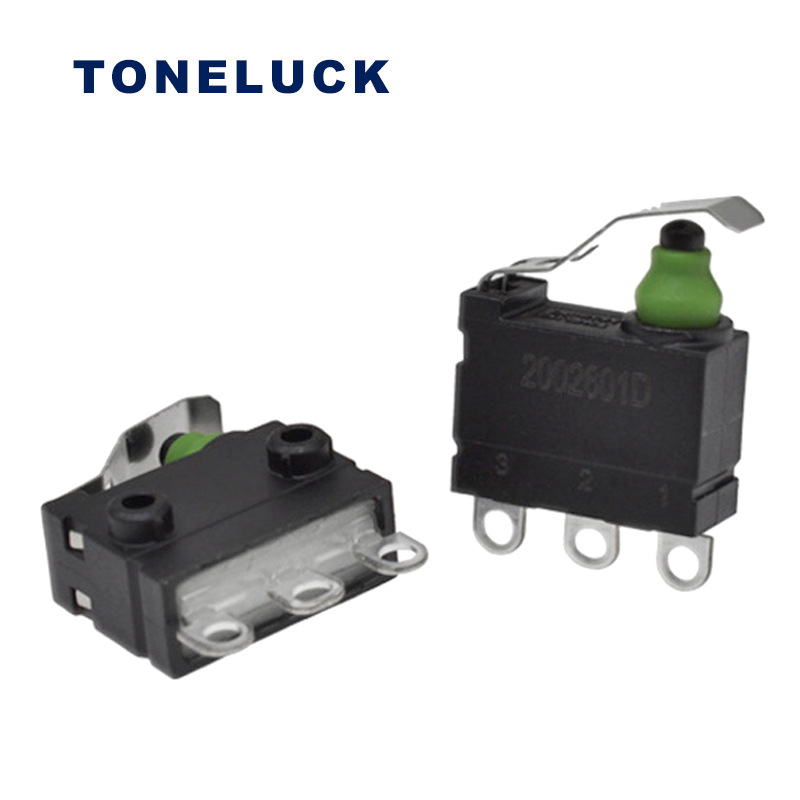

| Actuation Side IP Protection | IP67 |
|---|---|
| Terminal Side IP Protection | IP00 |
| Operation Force | 150±50gf |
| Operation Position | 9.45mm±0.20 (NC), 8.95mm±0.2 (NO) |
| Electrical rating | 100mA 30VDC;10mA 14VDC , 40T85 |
| Mechanical Life | 500,000 cycles |
| Electrical Life | 100mA 30VDC 50,000 cycles, 10mA 14VDC 200,000 cycles |
| Operating Force | 150±50gf |
| Insulation Resistance | 50 MΩ Min. |
| Dielectric Strength | 500VAC for 60±5 sec |
| Housing | UL94 HB |
| Contact Resistance | 500mΩ max. (initial) |

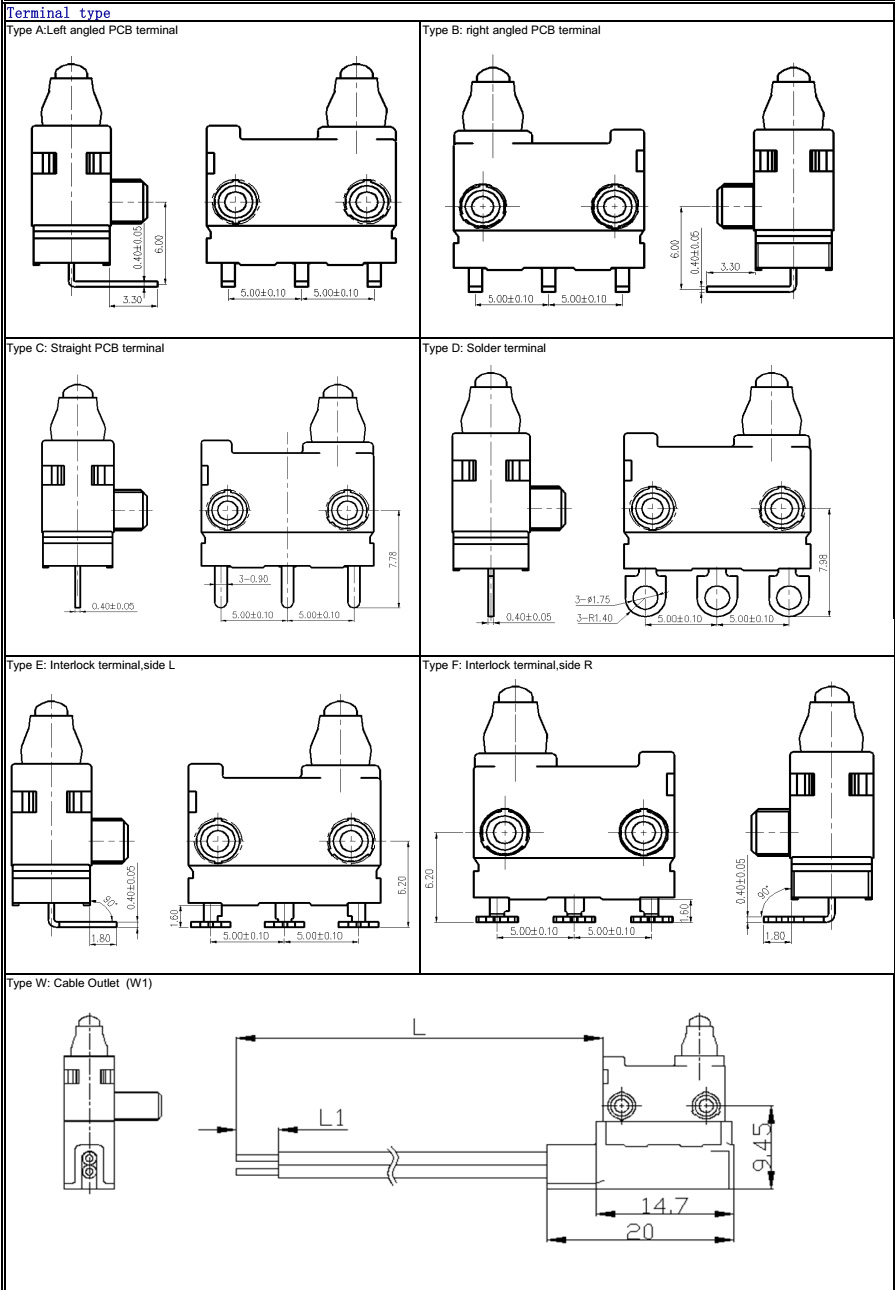

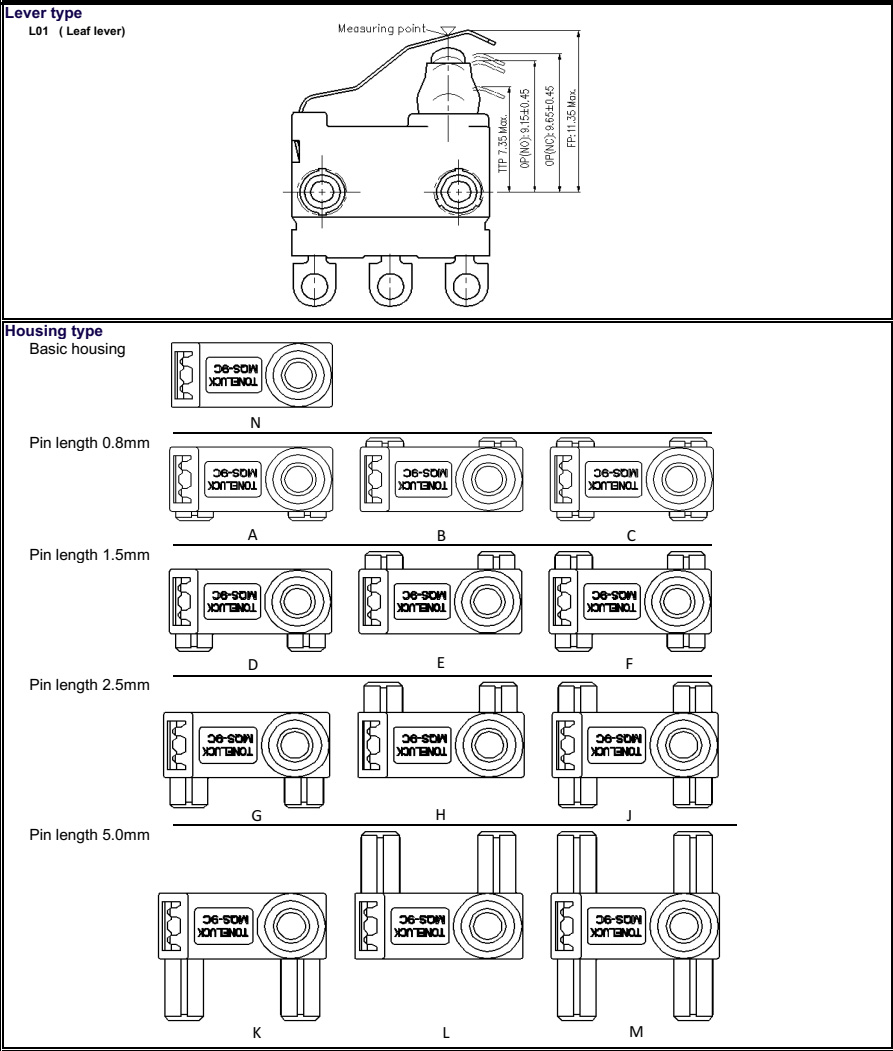

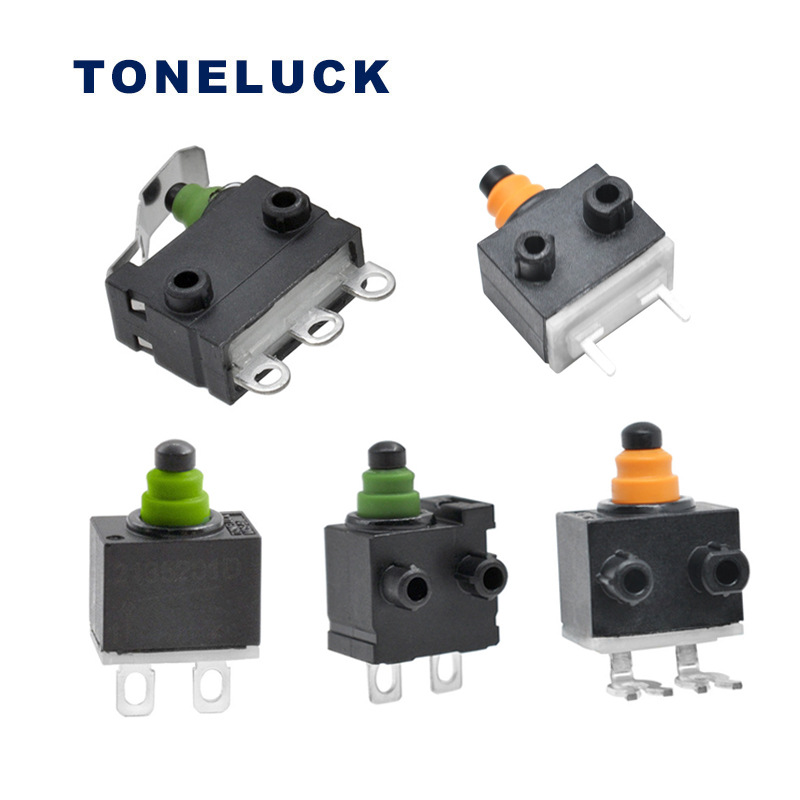

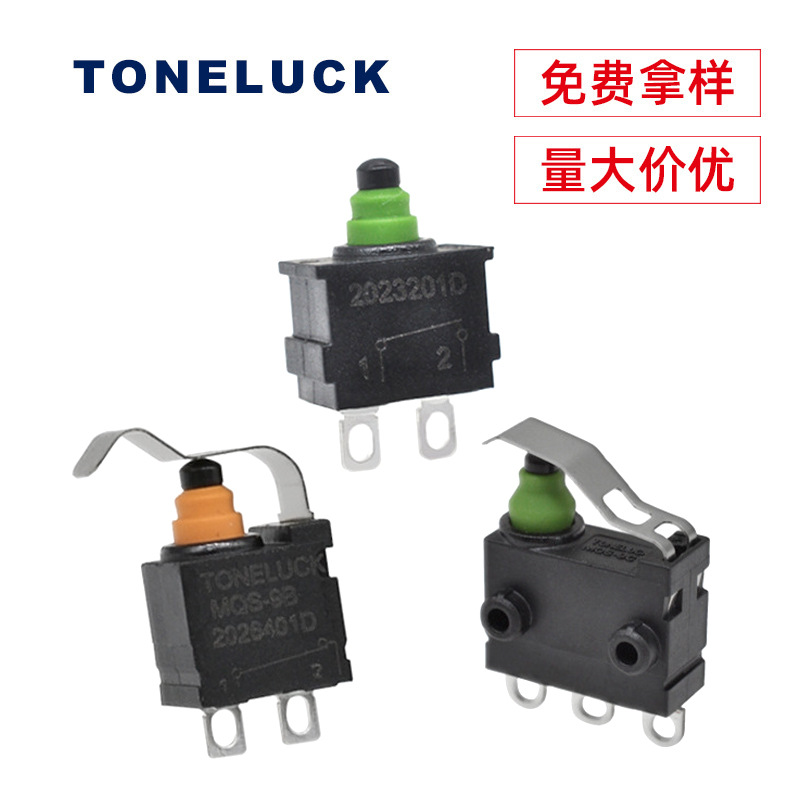

| Series | Electrical rating | Location Pin | Terminal Type | Lever Type | – | Version |
|---|---|---|---|---|---|---|
| MQS-9C | 1= 100mA 30VDC;10mA 14VDC,SPDT | A=Side L, 0.8mm | A=Angled PCB pins, side L | 00 = No lever | Standard Version: 01 | |
| 2= 100mA 30VDC;10mA 14VDC,SPST-NC | B=Side R, 0.8mm | B=Angled PCB pins, side R | 01= 1# lever | Custom-made:02,03,04,etc. | ||
| 3= 100mA 30VDC;10mA 14VDC,SPST-NO | C=Both Side, 0.8mm | C=Straight PCB pins | 02=2# lever | |||
| D=Side L, 1.5mm | D=Solder terminal | Custom-made:03,04,etc. | ||||
| E=Side R, 1.5mm | E=Interlock terminal,side L | |||||
| F=Both Side, 1.5mm | F= Interlock terminal,side R | |||||
| G=Side L, 2.5mm | P= Interlock2 terminal,side L | |||||
| H=Side R, 2.5mm | Q= Interlock2 terminal,side R | |||||
| J=Both Side, 2.5mm | W=Wires Specification: eg.W1,W2,W3,etc | |||||
| K=Side L, 5.0mm | ||||||
| L=Side R, 5.0mm | ||||||
| M=Both Side, 5.0mm | ||||||
| N=No Location Pin |
