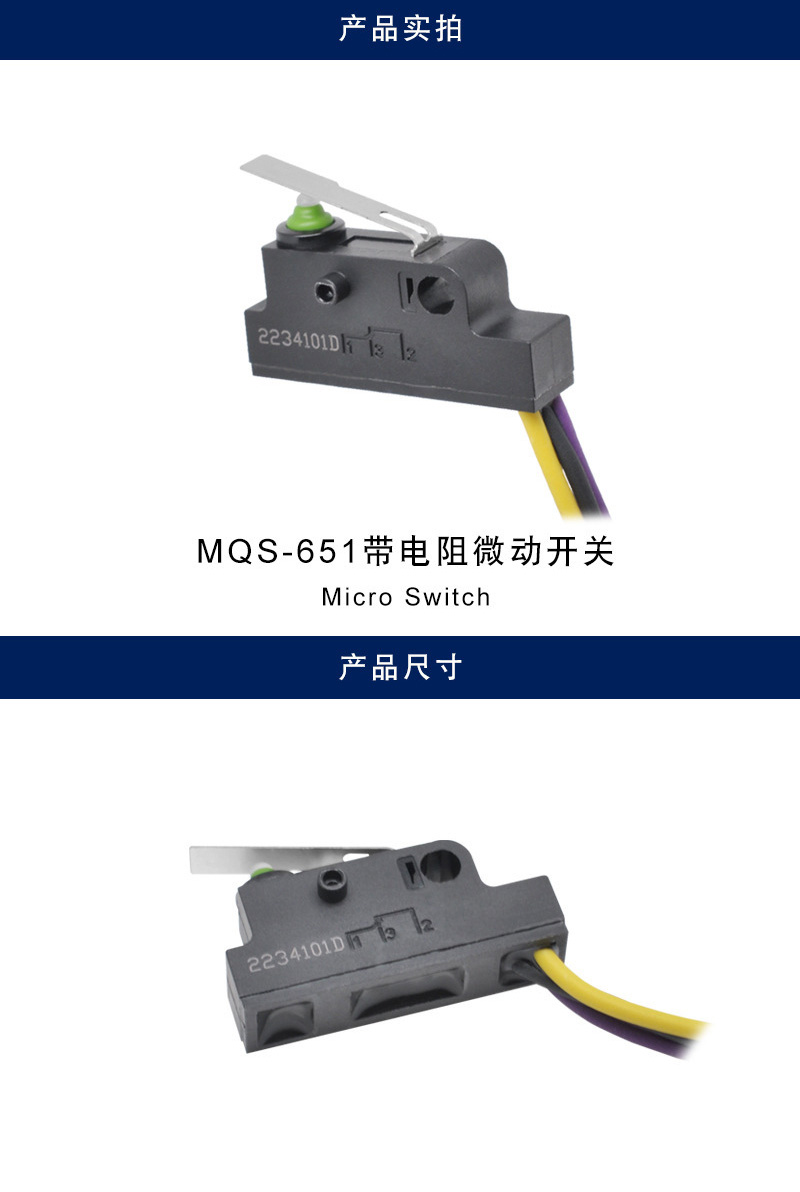

TONELUCK 汽车控制面板带电阻防水微动开关充电枪电子锁微动开关-MQS-6系列-Toneluck微动开关-汽车微动开关厂家直销--深圳市格律达电子有限公司

产品介绍基本参数端子类型杠杆类型注意事项

Introduction

产品介绍

Product Introduction


Introduction

基本参数

Basic parameters

MQS-6 Subminiature Micro Switch Ordering Guide

Series	Electrical rating	Location Pin	Terminal Type	Lever Type	Version
MQS-52 Terminal Version	1 = 2A/12V DC SPDT Silver Contacts	A = Side A, 1.5mm	A= Angled PCB pins Side A	00= Pin Plunger, no external lever	01: Standard Specification
	2 = 2A/12V DC SPST-NC Silver Contacts	B = Side B, 1.5mm	B= Angled PCB pins, Side B	01
	3 = 10~50mA/12VDC SPDT Silver Contacts	C = Both Sides, 1.5mm	C= Straight PCB pins, length: TBD	02
	4 = 10~50mA/12VDC SPST-NC Silver Contacts	D = Side A,2.5mm	D= Straight crimped pcb pins	03
	5 = 2A/12V DC SPST-NO Silver Contacts	E = Side B, 2.5mm	E= Straight Solder terminals	04
	6 = 10~50mA/12VDC SPST-NO Silver Contacts	F = Both Sides, 2.5mm	F= Straight PCB pins, length 4.15mm	etc.
		G = Side A,5mm	H= Angled Solder terminals, Side B
		H = Side B, 5mm	J= Interlock terminal, side A
		J = Both Sides, 5mm	K= Interlock terminal, side B
		N = No Position Pin

MQS-6 Waterproof Micro Switch Specification

Series	Actuation Side IP Protection	Terminals Side IP Protection	Operation Force	Operation Position
MQS-62	IP 67	IP00	150 gf max	6.85±0.2mm)(3.45±0.20mm no location pin)
MQS-63	IP 67	IP67	150 gf max	6.85±0.2mm)(3.45±0.20mm no location pin)
MQS-64	IP 68	IP68	150 gf max	6.85±0.2mm)(3.45±0.20mm no location pin)
MQS-65	IP 68	IP68	150 gf max	6.2±0.2mm)(3.45±0.20mm no location pin)

Electrical rating	10~50mA 12~24 VDC 250,000 cycles Min.
Operating Temp	-40℃ to +85℃
Mechanical Life	500,000 cycles Min.
Contact Resistance	50mΩ Max. (initial)
Operating Force	150gf Max.
Insulation Resistance	100ΩM Min.
Dielectric Strength	500VAC for 60 ± 5 sec.
Housing	UL 94 HB Thermoplastic (Base) UL 94 HB Thermoplastic (Cover)

Introduction

开关端子类型

Switch terminals

Introduction

开关杠杆类型

Switch lever

Introduction

注意事项

Notice

除垂直触发微动开关外，该开关还可通过凸轮形或倒角式滑动触发器来操作，其最大近似触发角度为40°。具体操作条件请参阅技术规格说明。
40°这一近似值是在以下条件下测试得出的：
● 倒角滑动部件材质：聚甲醛（POM）。
● 倒角滑动表面经过抛光处理，并涂抹了润滑油。
● 操作频率：每分钟30次。
● 操作行程直至达到允许的终了位置测量值“X”
