| Actuation Side IP Protection | IP67 |
|---|---|
| Terminal Side IP Protection | IP00 |
| Operation Force | 50-150gf |
| Operation Position | 7.1mm±0.25 |
| Electrical rating | 1~50mA/5~16VDC, 40T85, 300,000 cycles |
| Mechanical Life | 500,000 cycles |
| Contact Resistance | 500mΩ max. (initial) |
| Operating Force | 150gf Max. |
| Insulation Resistance | 100 MΩ min. |
| Dielectric Strength | 500VAC for 60 +/- 5 sec |
| Housing | UL94 HB |

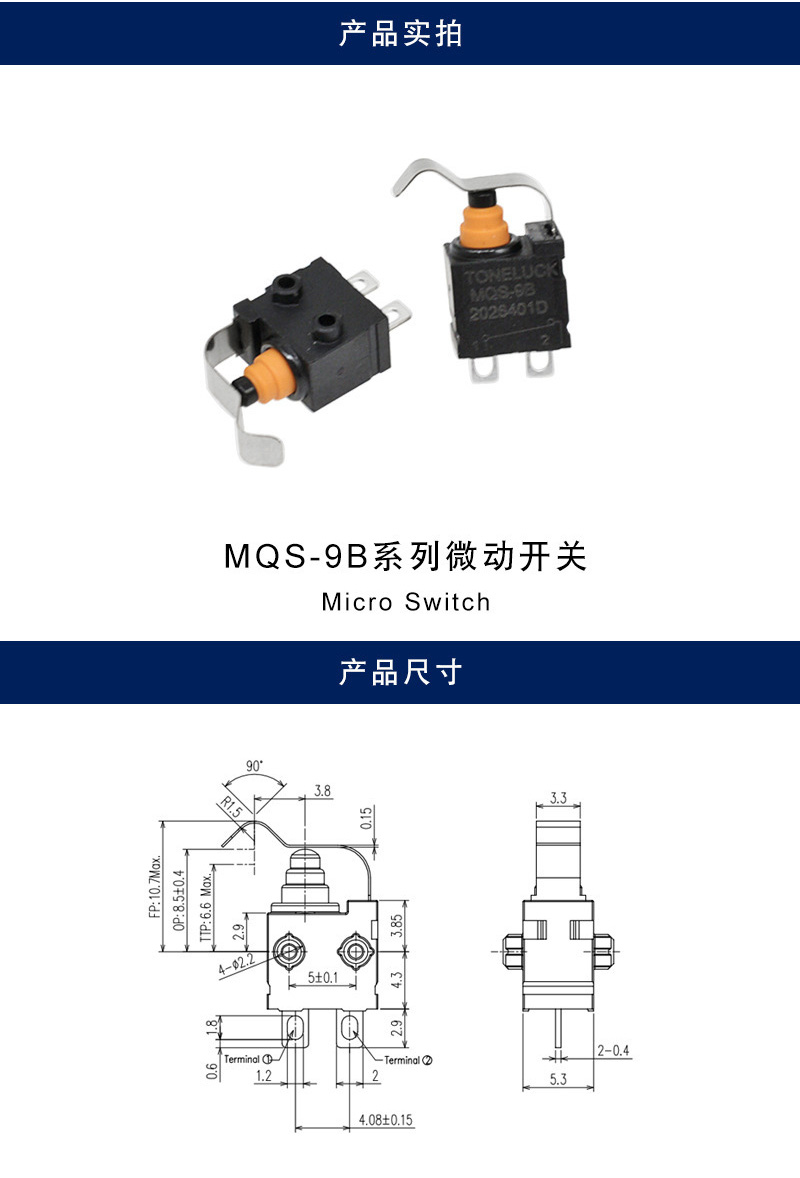

| Series | Electrical rating | Location Pin | Terminal Type | Lever Type | – | Version |
|---|---|---|---|---|---|---|
| MQS-9B | 1= 1~50mA/5~16VDC,SPST NO | A = Side L,2mm | A=Angled PCB pins, side L | 00 = No lever | Standard Version: 01 | |
| 2= 1~50mA/5~16VDC,SPST NC | B = Side R,2mm | B=Angled PCB pins, side R | 01= 1# lever | Custom-made:02,03,04,etc. | ||
| C = Both Sides, 2.0mm | C=Straight PCB pins | 02=2# lever | ||||
| D = Side L, 5.0mm | D=Solder terminal | Custom-made:03,04,etc. | ||||
| E = Side R, 5.0mm | E=Interlock terminal,side L | |||||
| F = Both Sides, 5.0mm | F= Interlock terminal,side R | |||||
| N = No Location Pin | G= Interlock terminal | |||||
| G = Both Sides，1.5mm | P= Interlock2 terminal,side L | |||||
| Q= Interlock2 terminal,side R | ||||||
| R= Interlock3 terminal,side L | ||||||
| T= Interlock3 terminal,side R | ||||||
| W=Wires Specification: eg.W1,W2,W3,etc |
